Length: 2.44m; 3m; 5m; customized
Skin aluminum thickness: 0.06-0.5mm
Thickness: 2-6mm
Coating: PE coating; PVDF coating

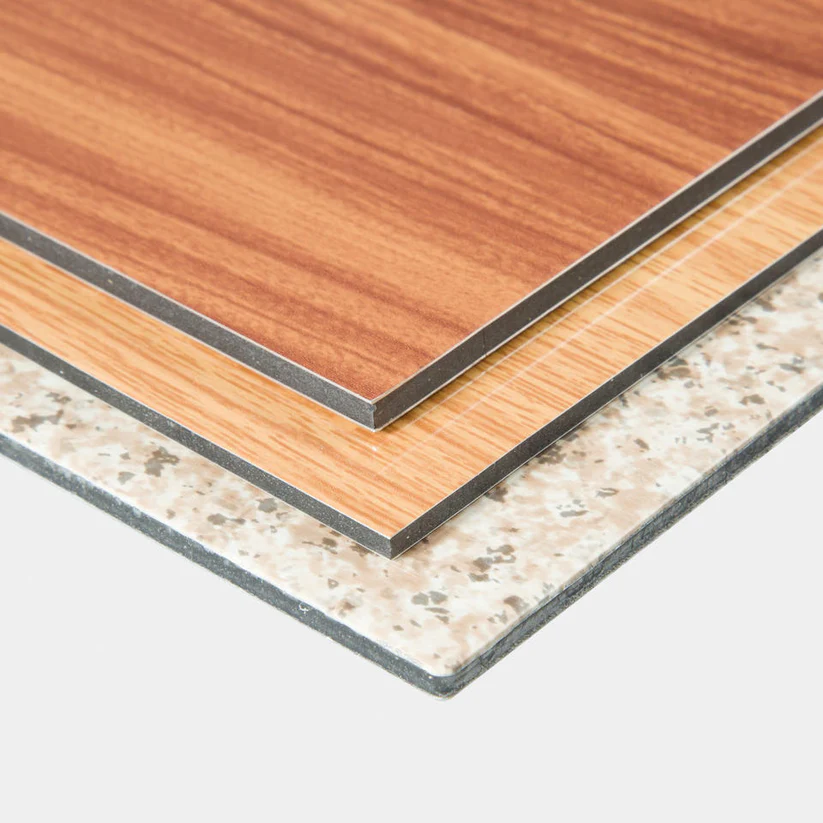

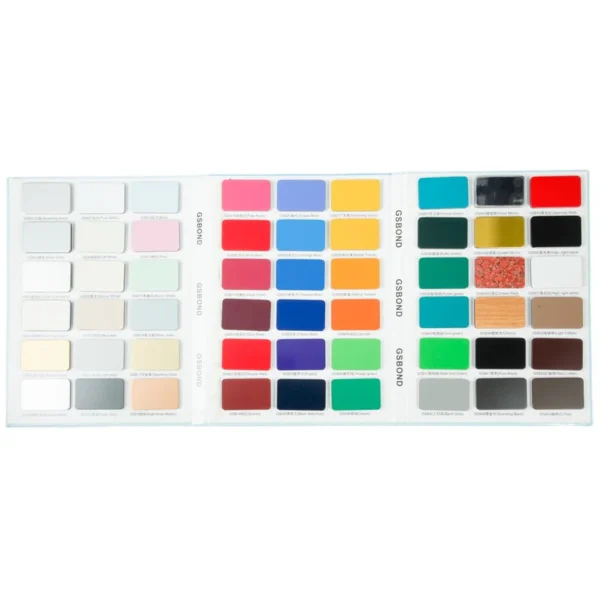

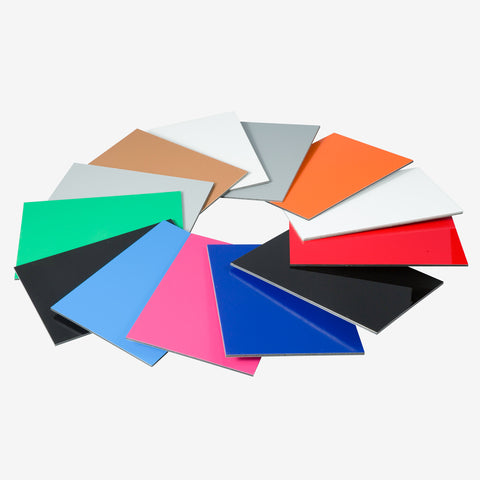

Color: Common; wooden; marble; mirror colors
Aluminum composite panel ACP ACM aluminum composite material
***Please negotiate with the buyer to confirm the detailed specifications before placing an order, all styles can be customized
***The price is not the final transaction price
Get a Free Quote

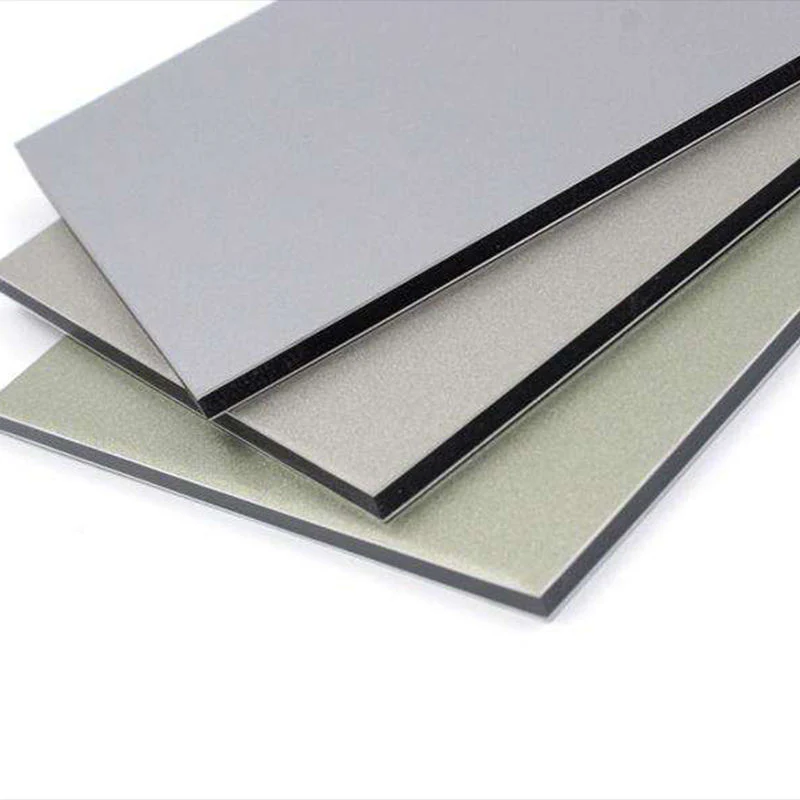

Aluminium composite panel is consisted of THREE layers, the surface and back covers of high strength aluminum alloy sheets and the core of nontoxic low density polyethylene (PE) sheet. The painting in the surface and back aluminum sheets are from PPG VALSPAR of USA and Becker of Sweden.
Specifications
Width: 1.22m; 1.25m; 1.5m; 2m
|
Aluminium alloy
|
1100, 3003, 5005
|
|
Pencil hardness
|
2H
|
|
Toughness of coating
|
2T
|
|
Elongation
|
5%
|
|
Tensile strength
|
130 Mpa
|
|
Temperature Resistance
|
-50°C to +90°C
|
|
Impact Strength
|
50kg/cm2 , no change
|
|
Boiling water resistance
|
Boiling for 2 hrs, no change
|
|
Thermal Expansion
|
2.4mm/m at 100°C Temp difference
|
|
Acid Resistance
|
Immersed in 2% HC1 for 24 hrs, no change
|
|
Alkali Resistance
|
Immersed in 2% NaOH for 24 hrs, no change
|
|
Cleaning Resistance
|
Cleaned 1000 times with water, no change
|
|
Oil Resistance
|
Immersed in 20# engine oil for 24 hrs, no change
|
|
Solvent Resistance
|
Cleaned 100 times with dimethylbenzene, no change
|
|
Skyrainbow ACP Tolerance(mm) :
|
|
|
Thickness
|
± 0.2
|
|
Width
|
± 2
|
|
Length
|
± 4
|
|
Diagonal
|
± 5
|
Features:
1.Light weight, high strength, extreme rigidity; superior impact resistance,
2.Excellent surface flatness and smoothness ;
3.Heat insulation, sound insulation, fire-resistance;
4.Acid-resistance, alkali-resistance, good weather proofing and non-resonance;
5.Various uniform colors ,can be easily processed and fabricated, quickly installed;
6.Elegant and magnificent, good flexibility fits various designs;
7.Easily maintenance, simply cleaning.
2.Excellent surface flatness and smoothness ;
3.Heat insulation, sound insulation, fire-resistance;
4.Acid-resistance, alkali-resistance, good weather proofing and non-resonance;
5.Various uniform colors ,can be easily processed and fabricated, quickly installed;
6.Elegant and magnificent, good flexibility fits various designs;
7.Easily maintenance, simply cleaning.
