Description

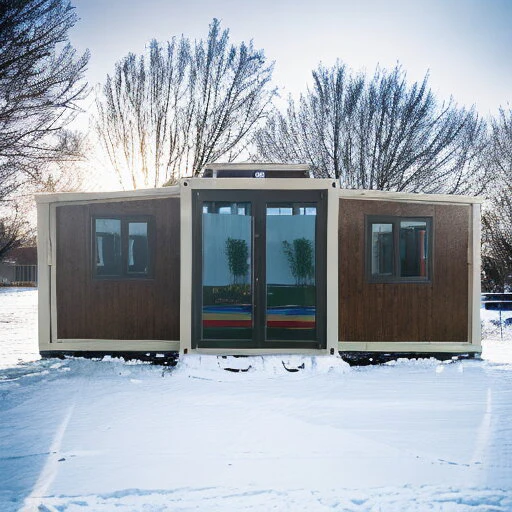

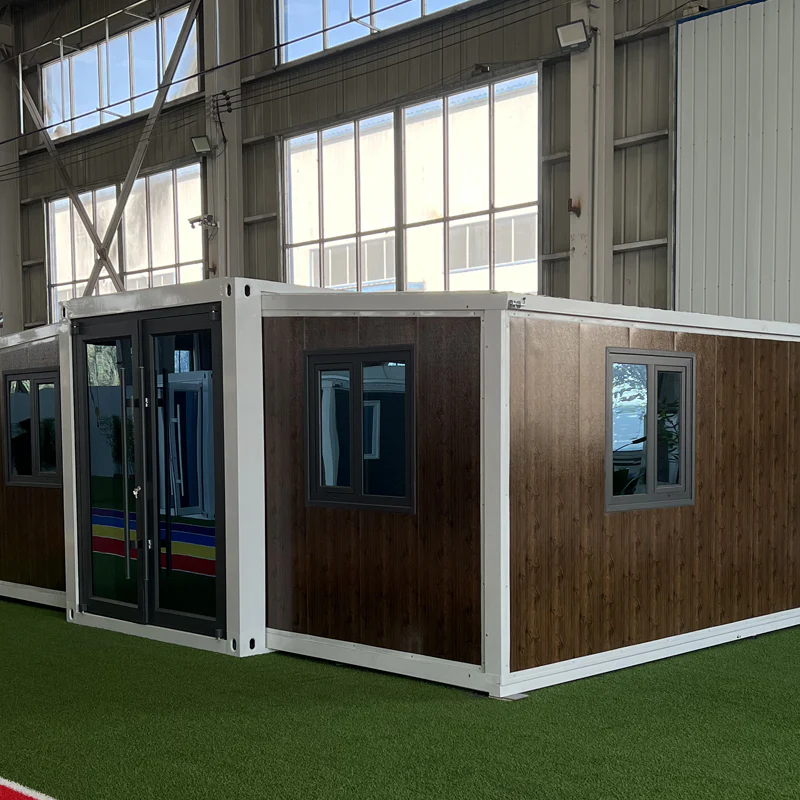

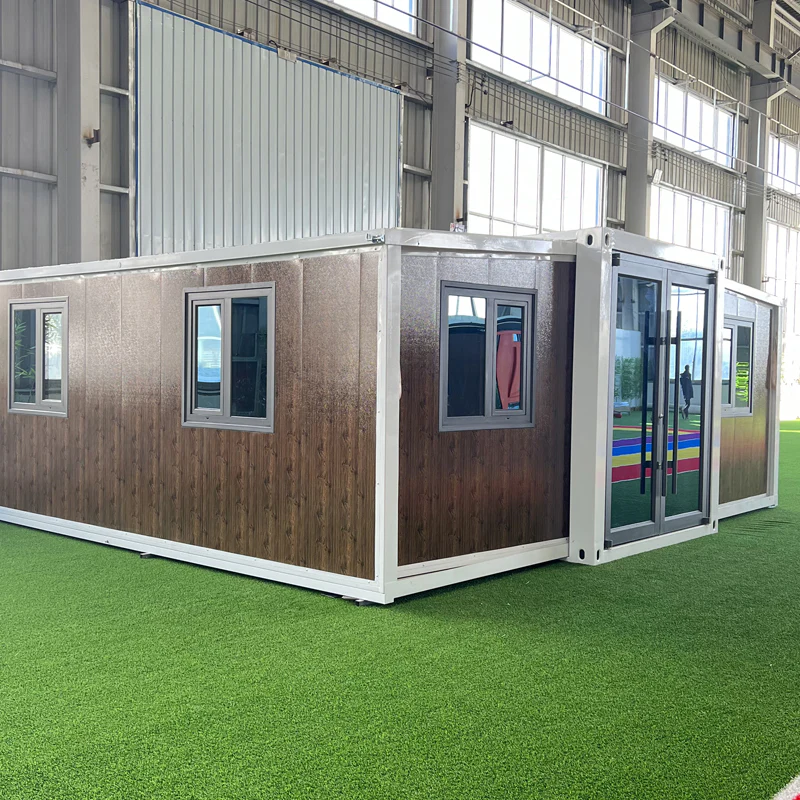

Expandable House Prefabricated Building home
|
essential feature
|
external dimension(mm)
|
6200*11800*2480
|
|
inside dimension(mm)
|
6040*11460*2240
|
|
|
Folding state(mm)
|
2200*11800*2480
|
|
|
total mass
|
4.5t
|
|
|
frame structure
|
middle crossbeam-roof
|
T3.0mmQ235B
|
|
middle crossbeam-floor
|
T3.0mmQ235B
|
|
|
End side beam
|
t1.5mmQ235B
|
|
|
middle standing pillar
|
T3.0mmQ235B
|
|
|
Side wall frame
|
t1.5mmQ235B
|
|
|
secondary frame
|
t1.5mmQ235B
|
|
|
support ring
|
t4mmQ235B
|
|
|
folding hinge
|
13mm Galvanized hinge
|
|
|
all frame protection paint
|
Electrostatic spray
|
|
|
Middle cabinet top and
bottom |
80*140
|
|
|
Side cabinet top and
bottom |
40*60*1.5 square
|
